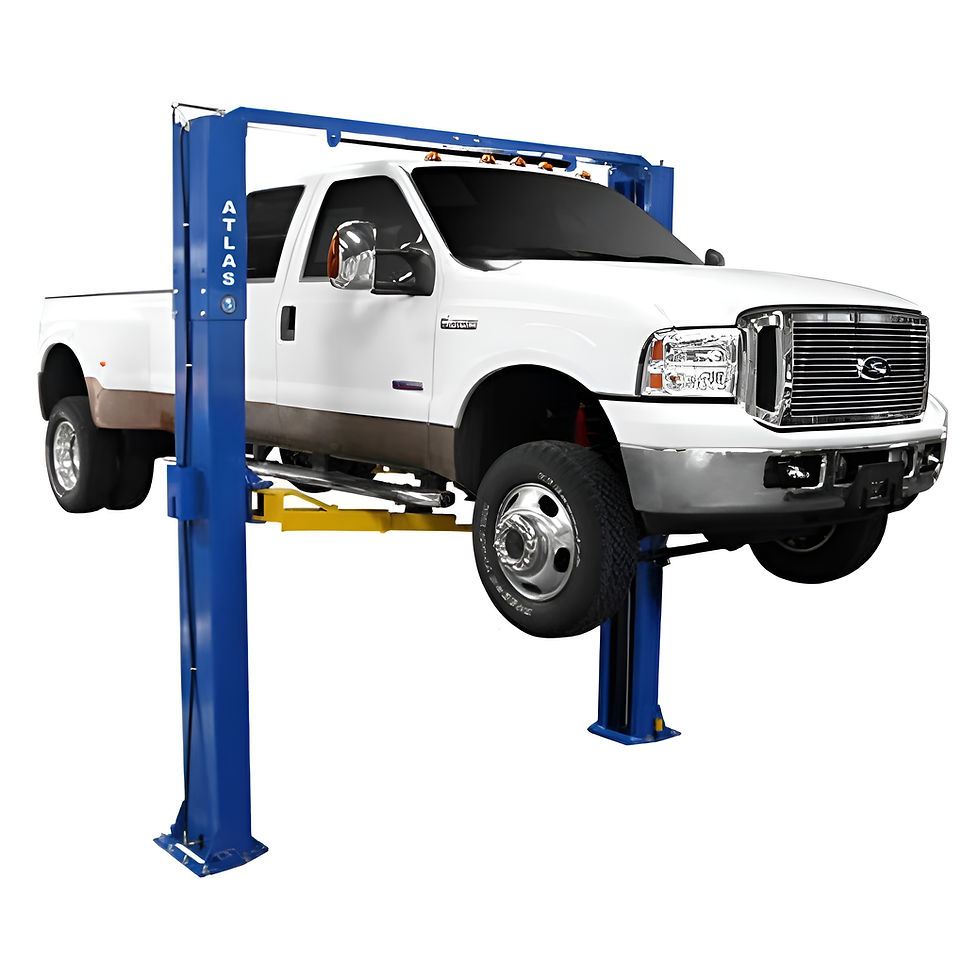

Atlas BP8000 Baseplate Two-Post Lift – 8,000 lb Capacity
Description
The Atlas BP8000 2 Post Bottom Plate Car Lift delivers reliable performance and exceptional versatility, making it an ideal solution for a diverse range of vehicles including compact cars, SUVs, and light trucks, thanks to its robust 8,000 lb (approximately 3,629 kg) capacity. Its distinguishing bottom plate configuration makes it particularly well-suited for garages and workshops with height restrictions, as it eliminates overhead obstructions. This design provides unobstructed access to the vehicle’s underside, greatly enhancing efficiency and ease during various servicing and maintenance operations.
Constructed with durability and safety in mind, the BP8000 features a symmetrical arm design, allowing for balanced and secure lifting of vehicles. The lift is powered by dual hydraulic cylinders, ensuring smooth, consistent, and reliable operation. Operator security is paramount, which is why this model incorporates a dual-point safety lock system for multiple locking positions and automatic arm restraints that prevent arm movement once the vehicle is lifted. The lift’s high-strength steel construction and a resilient powder-coated finish contribute to its long-lasting performance, even in the most demanding shop environments.
Key Features
High Lifting Capacity: 8,000 lbs (3,629 kg), suitable for compact cars, SUVs, and light trucks.
Baseplate Style Design: Ideal for shops with low ceilings due to the absence of overhead beams.
Symmetrical Arm Type: Features adjustable symmetrical arms that provide balanced lifting and fit a wide range of vehicle types.
Advanced Lock System: Includes a dual-point safety lock release for easy and secure lowering, along with automatic arm restraints for enhanced safety during lifting.
Hydraulic System: Equipped with dual hydraulic cylinders for smooth, reliable, and consistent lifting and lowering operations.
Durable Finish: Protected by a powder-coated finish, offering enhanced durability and resistance to wear and corrosion.
Certified Quality: ISO 9001 and CE Certified, ensuring adherence to international quality and safety standards.
Specifications
Capacity | 8,000 lbs (3,629 kg) |
Overall Height | 111″ (9 ft. 3 in. or 2,819 mm) |
Overall Width | 132″ (11 ft. or 3,353 mm) |
Distance Between Columns | 111.5″ (9 ft. 3.5 in. or 2,832 mm) |
Drive Thru Clearance | 100″ (8 ft. 4 in. or 2,540 mm) |
Maximum Lift Height | 72″ (6 ft. or 1,829 mm) |
Minimum Pad Height | 4.5″ (114 mm) |
Motor | 220V Single Phase |
Shipping Weight | 1,800 lbs (816 kg) |
Material | High-strength steel construction |
Certifications | ISO 9001 and CE Certified |
Concrete Requirement | Minimum 4″ (102 mm) thickness at 3000 PSI |
Reviews
The BP8000 is a functional baseplate lift for low-ceiling applications. The 8,000 lb capacity handles passenger vehicles and light trucks. The dual hydraulic cylinders operate smoothly. The safety features work. Negatives include the floor rail obstacle, lower max lift height compared to overhead designs, and sparse installation documentation.
The BP8000 solves the ceiling height problem and that's its primary value. The 8,000 lb capacity works for standard vehicles. The hydraulics and safety features function properly. The ISO 9001 and CE certifications are real. However, at 1,800 lbs shipping weight installation requires help, and the floor rails are an ongoing inconvenience.
The BP8000 solves the ceiling height problem and that's its primary value. The 8,000 lb capacity works for standard vehicles. The hydraulics and safety features function properly. The ISO 9001 and CE certifications are real. However, at 1,800 lbs shipping weight installation requires help, and the floor rails are an ongoing inconvenience.
The BP8000 solves the ceiling height problem and that's its primary value. The 8,000 lb capacity works for standard vehicles. The hydraulics and safety features function properly. The ISO 9001 and CE certifications are real. However, at 1,800 lbs shipping weight installation requires help, and the floor rails are an ongoing inconvenience.
The BP8000 lifts vehicles safely in my low-ceiling garage. The dual hydraulic cylinders work well. The dual-point safety locks are reliable. The high-strength steel feels solid. But the baseplate creates floor obstructions, the 72-inch max lift height is limiting, and the paint had a few chips on arrival. Functional but imperfect.
